Used Deckel LK Jig Boring / Coordinate Grinding Machine – Serial No. 1281 – Poland
Technical Specification
| Manufacturer / Brand | Deckel |
|---|---|
| Product model | LK |
| Serial Number | 1281 |
| Place | Łódź, Łódź |
| Weight | approx. 1000 kg kg |
| Dimensions | Travel X/Y/Z: 400/254/340 mm; table 650 x 300 mm |
Details ads
| Manufacturer / Brand | Deckel |
|---|---|
| Product model | LK |
| Serial Number | 1281 |
| Place | Łódź, Łódź |
| Weight | approx. 1000 kg kg |
| Dimensions | Travel X/Y/Z: 400/254/340 mm; table 650 x 300 mm |
Used Deckel LK Jig Boring / Coordinate Grinding Machine – Serial No. 1281

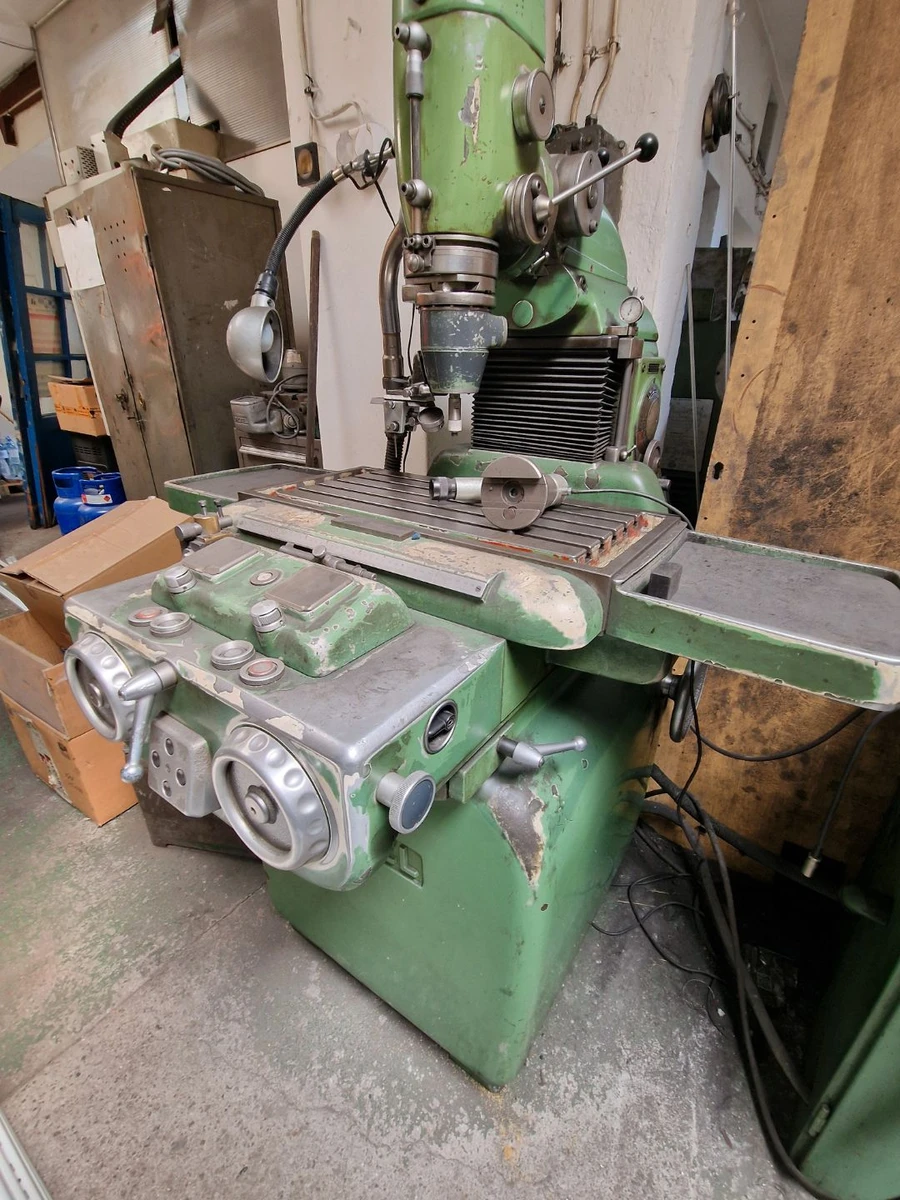

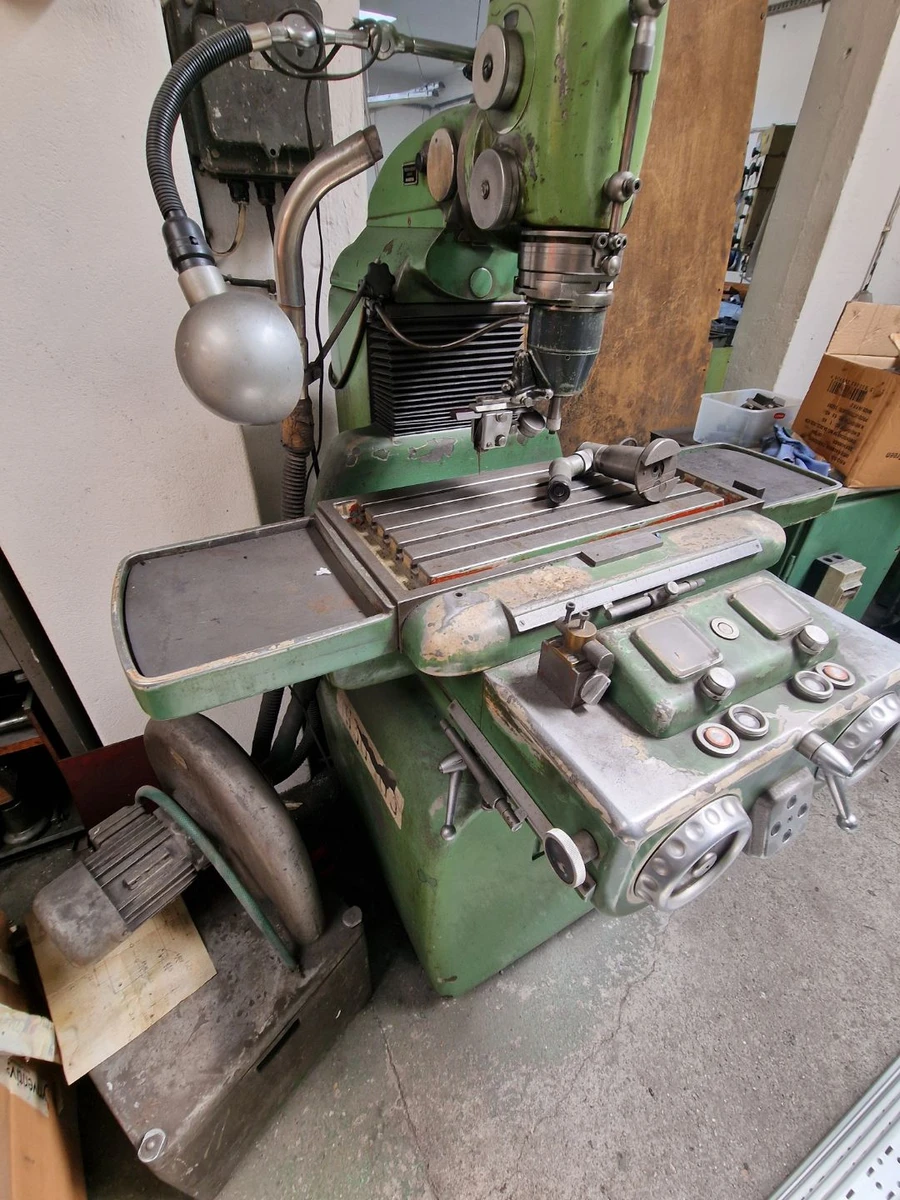

We offer for sale a used Deckel LK universal jig boring and coordinate grinding machine, manufactured by Friedrich Deckel, München (Germany). According to the seller the machine is operational and still connected under power, and it is equipped for both precision boring / coordinate drilling and coordinate grinding work. Offered from a Polish injection-mould tooling shop (ZPHU Freso / Wolf).
Technical Specifications (Deckel LK series)
- Manufacturer: Friedrich Deckel, München, Germany
- Type: LK (jig boring / coordinate grinding machine), machine no. 1281
- Longitudinal travel X: 400 mm
- Cross travel Y: 254 mm
- Vertical travel Z: 340 mm
- Spindle speed range: 40–3150 rpm (20 steps)
- Table size: 650 x 300 mm
- Weight: approx. 1000 kg

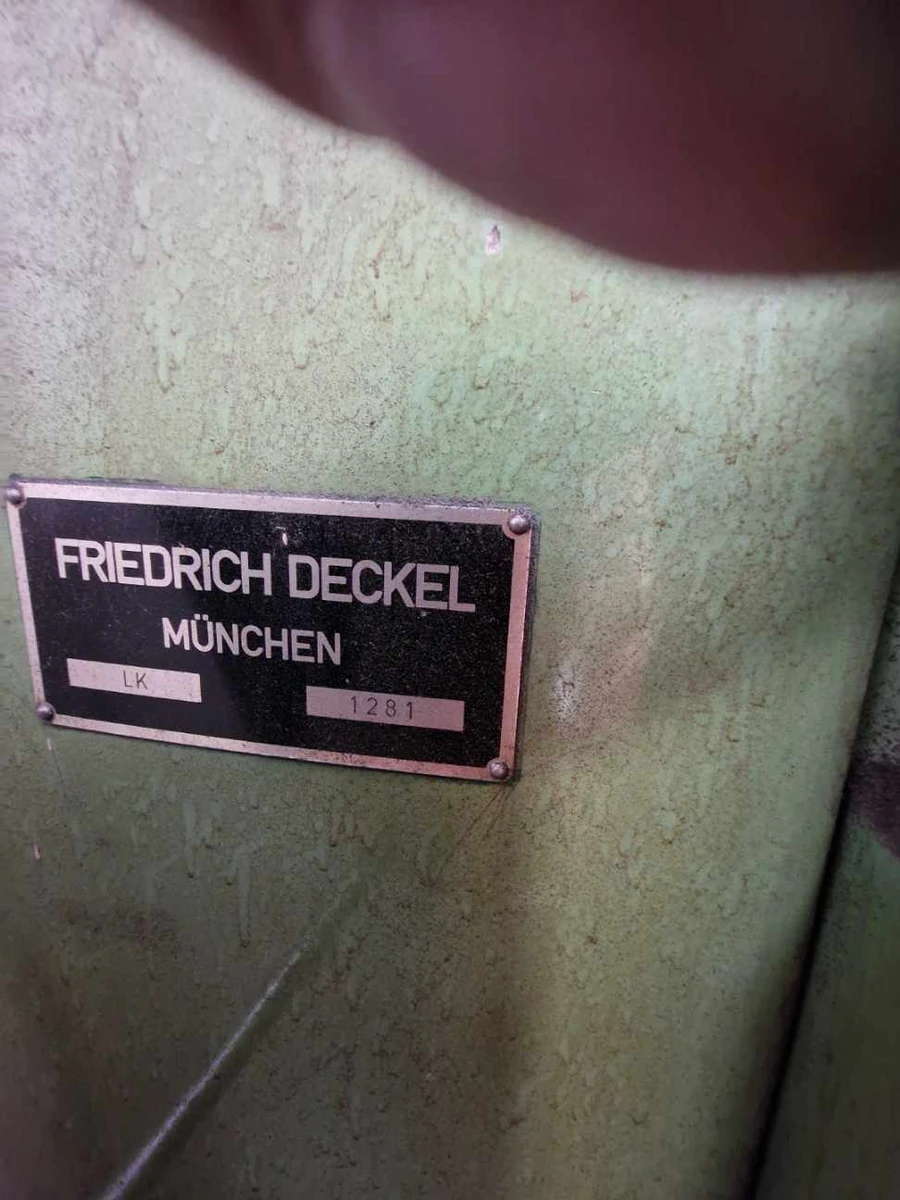

- Year of manufacture: not confirmed (estimated 1970s – to be verified from the nameplate at inspection)
Equipment and Accessories
- Motors for the full spindle speed range

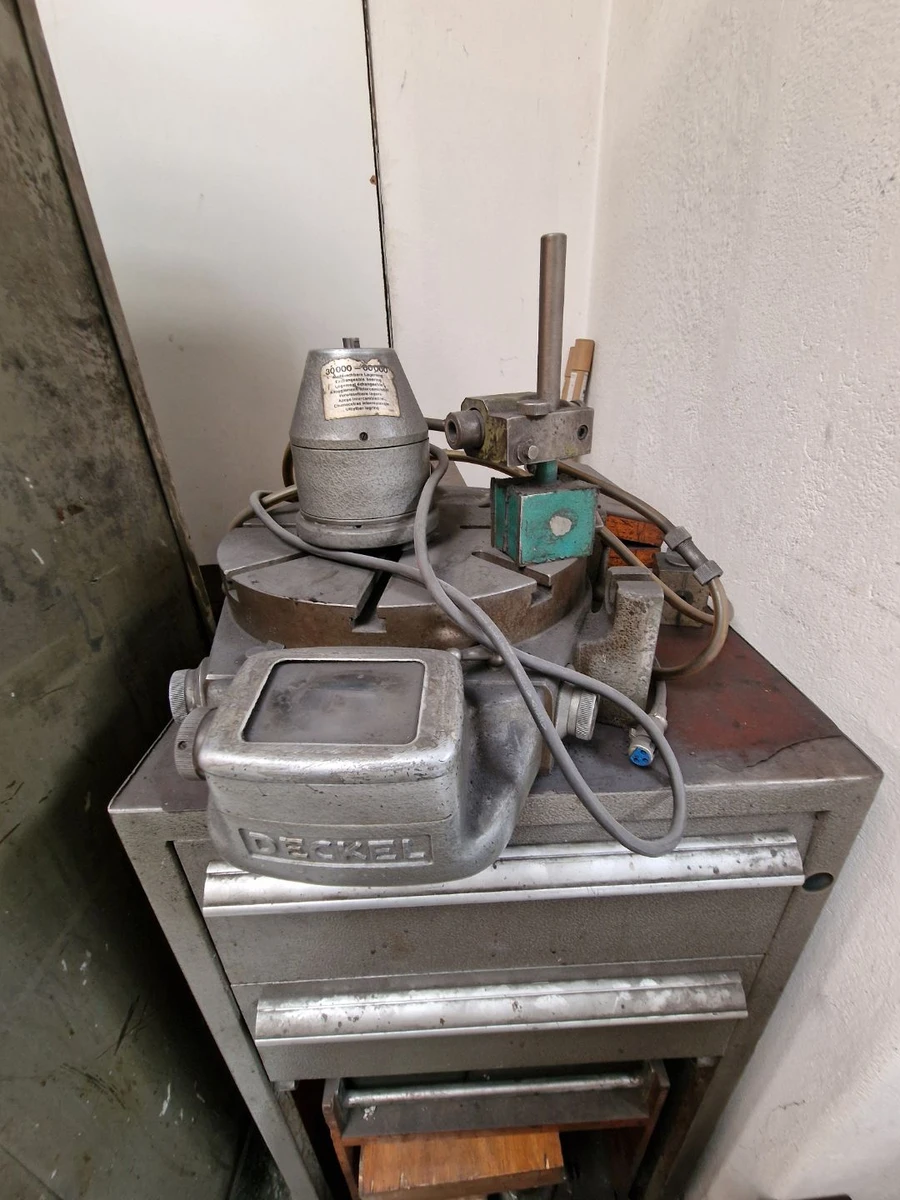

- Optical rotary table
- Microscope for tool setting
- Centering devices
- Grinding wheel holders (for coordinate grinding)
- Spare high-frequency converter
- Dust extractor
- Grinding head
Condition
The machine is operational and connected according to the seller. The external visual condition is poor – paint chips, contamination and signs of age are visible in the photos. A solid choice for a buyer looking for a functional precision machine at a low entry price; cosmetic refurbishment recommended.
Location and Price
Location: Łódź, Łódzkie (Łódź Voivodeship), Poland. Price: 3,600 EUR net. Loading and transport can be organized at extra cost.
Contact: Marcin Białczyk, +48 503 75 55 81, ***@****.
